SPECIFICATION

 Measure fluid

 Water,sewage,seawater(other liquid need to be customized)
The pipeline should be full of liquid

 Medium temperature

 0.1-30℃

 Working environment

 Temperature:-30-45℃; humidity≤100%(RH)

 Pressure

 1.6Mpa

 Electromagnetic compatibility class

 E2 level

 Communication interface

 RS485/USART/Infrared(can customize pulse output )

 Output signal

 Two way OCT or TTL pulse output/one way 4-20mA analog output

 Power supply

 Built-in lithium battery(3.6V,19Ah)/DC8-36V power supply/two-wire system 4-20mA

 Protection level

 IP68 ,available to work 2 meters underwater

 Power consumption

 More than 10 years for DN15-DN150 battery; more than 6 years for DN200-DN300 battery

 Measurement cycle

 measuring:1 times/second; verification:4 times/second

 Data storage

 Use EEPROM/Flash,automatically record the cumulative flow of last 128 months and last 512 days

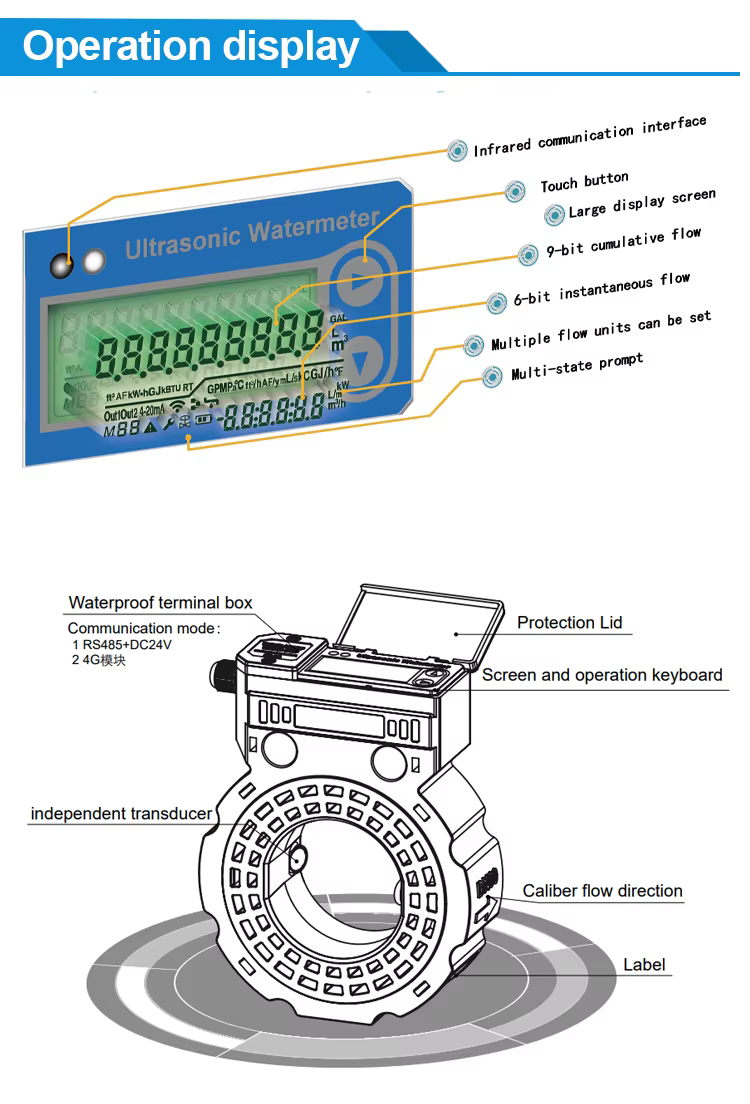

 Digital display

 9 digits cumulative flow and 4 digits instantaneous flow shown in two rows and varies of state prompt and units
