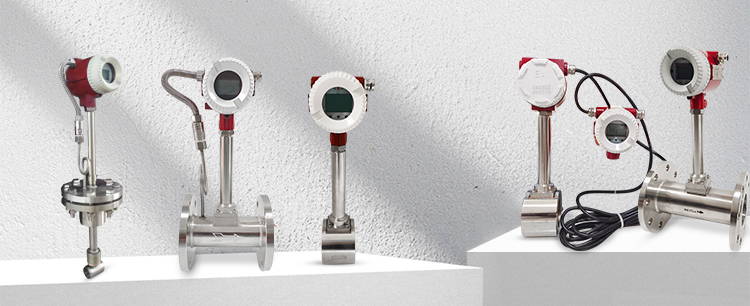

Vortex Flow Meter
Category Vortex Flow Meter Size: DN15~DN300mm (flange) Signal output: Pulse, 4-20mA, Hart, RS485


INTRODUCTION

Steam flow measurement is a kind of velocity flowmeter. It is based on the Karman vortex street theory and uses piezoelectric crystals to detect the vortex frequency generated when the fluid passes through the triangular column in the pipeline, so as to measure the flow of the fluid. Steam air flow  measurement are widely used in petroleum, chemical, power heating and other industries.



TECHNICAL DATA


Applicable Medium Liquid, Gas, Steam, Compressed air
Medium Temp   -40¡æ- 250¡æ; -40¡æ- 350¡æ £¨high temperaure probe£©
Nominal Pressure 1.0MPa-4.0MPa (Other pressure can be customized)
Accuracy  ¡À1.5% (gas, steam); 1.0% (liquid)
Specifications  DN15-DN50(Thread)
DN15-DN300(Flange/Tri-clamp)
DN200-DN2000(Insertion)
Material Carbon steel, SS304, SS316
Power Supply 12-24VDC or 3.6V battery powered
Signal Output  Pulse, 4-20 mA, RS485, Hart
Temperature and pressure compensation optional
Flow unit      Nm /h£¬Nm /m£¬Nm /s£¬m /d£¬m /h£¬m /m£¬ m3/s£¬l/h£¬l/m£¬l/s£¬t/d£¬t/h£¬t/m£¬kg/d£¬kg/h£¬kg/m£¬kg/s£¬g/h£¬g/m£¬g/s.
( Note: Totalizer flow‟s unit based on the flow unit.)
Explosion-proof class  Exd II CT6 GB

FEATURES


¡ô High measurement accuracy and wide measuring range;

¡ô A wide range of measuring media, liquid, gas and steam can be measured;

¡ô The working temperature is high, and the medium temperature can reach 350 degrees;

¡ô No moving parts, no wear, high reliability;

¡ô The sensor is made of stainless steel, which is corrosion-resistant.



APPLICATION


Steam flow measurement is always used in measuring steam with high temperature, it also can be used in most kinds of gases like nitrogen, methane, hydrogen, air, compressed air. Because of its accurate measurement, it can also be used for gas trade settlement.

It can also measure liquids. We should pay attention to avoid vibration while use air flowmeter.
